Lincoln Electric's Unforgettable Legacy in its First 125 Years

Discover Lincoln Electric's story through a commemorative 125th Anniversary 3-dimensional art piece that was designed in collaboration with One of A Kind Art Studio.

The art is a visual history of the many accomplishments that distinguish the character and values of remarkable employees and brand.
From portraits of the founders, John C. Lincoln and James F. Lincoln, the art flows counterclockwise around the Guiding Principle and the Purpose to reflect Lincoln Electric's history, leaders, accomplishments, innovation, growth, and operational excellence.

DOWNLOAD LINCOLN ELECTRIC DOWNLOAD LINCOLN ELECTRIC DOWNLOAD LINCOLN ELECTRIC DOWNLOAD LINCOLN ELECTRIC DOWNLOAD LINCOLN ELECTRIC DOWNLOAD LINCOLN ELECTRIC DOWNLOAD LINCOLN ELECTRIC DOWNLOAD LINCOLN ELECTRIC DOWNLOAD LINCOLN ELECTRIC

LINCOLN ELECTRIC

DOWNLOAD PDF

Get Now!

STICK WELDERS

Invertec® 270SX Invertec° 400SX

Professional welders for tough conditions

The Invertec® 270SX Er 4005X Stick and Lift TIG welders have been designed and manufactured to combine both a rugged industrial construction with excellent arc characteristics. The machines are built to handle harsh environmental conditions using Lincoln tunnel technology to separate the PCBs and sensitive parts from contaminating cooling airflow. The robust metal case with large protective rubber corners make them suitable for operation on site in conjunction with a generator, or within a workshop environment, providing maximum flexibility and durability. Intensive and extensive testing in the Lincoln lab guarantees the quality of these welders.

Features

Professional welders for tough conditions

Robust, built for heavy environmental conditions.
Adiustable Hot Start and Arc Force allow a smooth start/restart of the electrode and prevent sticking of the electrode in the weld pool.
Fully featured and user friendly control panel with digital display allows precise setting of welding current.
Soft and Crisp mode: multiple arc modes for different electrode types.
Auto Adaptive Arc force: standard in Soft and Crisp modes the automatic variable Arc Force operates when required.
Features "Lift TIG" with no tungsten contamination.
Maximum output of 270A and 400A allows the use of 5.0 mm (27090 and 6.3mm (400S4 electrodes.

Technical Specifications

Product	Item Number	Primary Voltage (50-60Hz)	Current Range (A)	Rated Output	Fuse Size (A)(Slow)	Weight(kg)	Dimensions HxWxD (mm)	Protection/Insulation Class
Invertec® 270SX	K12040-1	400V/3Ph	5-270	270A/30.8V/35% 200A/28V/100%	20	23.6	389 x 247 x 502	IP23 / H
Invertec® 400SX	K12042-1	400V/3Ph	5-400	400A/36V/35% 300A/32V/100%	30	36	455 x 301x 632	IP23 / H

DUAL MAVERICK-450

ENGINE-DRIVEN WELDER/GENERATOR

Built for the construction site, the pipeline, and the rental fleet, the Dual Maverick 450 is two complete welders in one.

The design features the 26.4 HP @ 3000 RPM Perkins’ 4030-11 Tier 4i water cooled diesel engine. That is enough power for two operators to weld at the same time, or for one operator to gouge with up to a 3/8 in. [9.5 mm) carbon.

VANTAGE® 400-I

Designed for Welding in Specific Environments

When it comes to pipe and construction welding, every application, and even every region, has special requirements. The engine, controls, welding and AC generator specs — all must meet the requirements of the job and the locale.

POWERTEC° 425S 505S

Powerful potential

Superb arc behaviour with argon mix and 100% CO2
Voltage selectors with multiple settings for precise adjustment.
Two choke tabs to support superb Arc behaviour.
Synergic settings for easier control with LF24M Pro.
Bright, digital volt and ammeter. Large diameter wheels, push/ pull bar and lifting eyes.
Simple water cooling conversion with Cool Arc® 25.
Fan as needed (F.A.N.).

SPEEDTEC° 400SP & 500SP

Ultimate performance

High duty cycle multi-process power source.
High Efficiency Processes (Speed Short Arc, Soft Silent Pulse, High Penetration Speed).
MECHAPULSE produces very high quality welds with rippled seam appearance.
Modular concept to build configuration for any requirements.
Double-side fully potted PCB with superior resistance for dust, humidity, jerk or vibrations.

Power Wave® 300C

Full multi-process, portable flexibility

Equipped with a complete portfolio of high-performance wave forms, providing flexibility to tackle any welding application up to 350A. Wire feeding system built in.
Comes standard with Power Wave® Manager software tools, simplifying welding setup and operation.
CheckPoint software allows you to track equipment usage, store weld data, configure fault limits and more.
Compact and durable case is IP23-rated to withstand harsh environments.

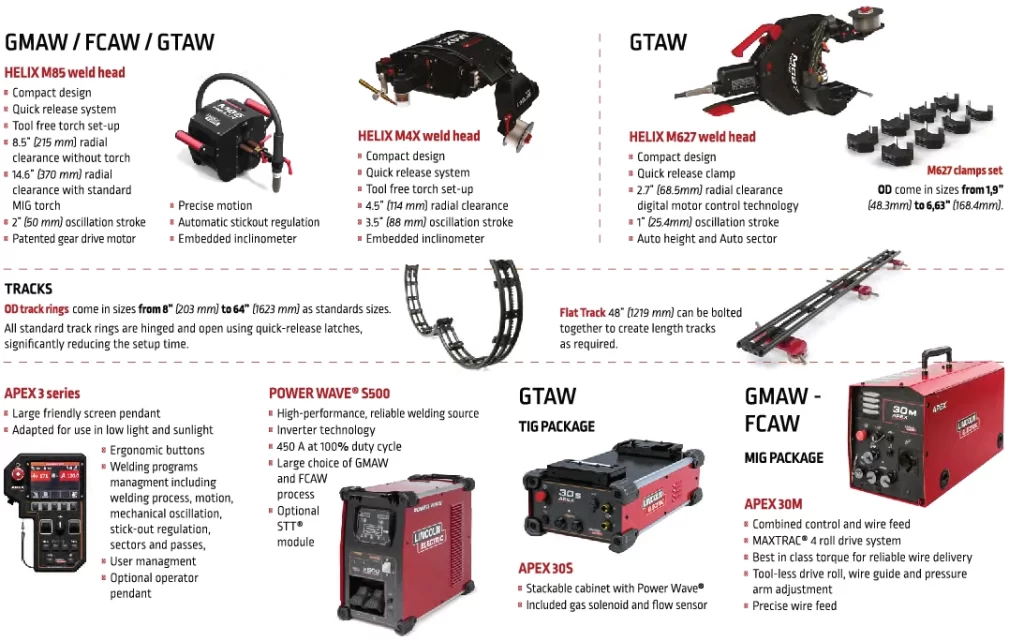

Power Wave® S500

Multi-process power and versatility

Equipped with a complete portfolio of high-performance wave forms, providing flexibility to tackle any welding application up to 550A (S500).
Comes standard with Power Wave® Manager software tools, simplifying welding setup and operation.
CheckPoint software allows you to track equipment usage, store weld data, configure fault limits and more.
Compact and durable case is IP23-rated to withstand harsh environments.

PIPEFAB™ CE READY PAK

Game-changing performance and simplicity

From root to cap, to final fit — the PIPEFAB™ system has you covered with weld modes that have been fine-tuned to deliver breakthrough arc performance.
Our patented STT® process was the original open-root MIG solution to hit the market. After decades of leading the industry, we've taken the performance of this iconic process to the next level — making it better than ever.
Powered by patented Cable View™ Technology, the PIPEFAB™ system continually monitors cable inductance and adjusts the waveform to maintain consistent arc performance with long or coiled cable runs up to 20 m.

Activ8X™

Portable, semi automatic wire feeder

Impact resistant, flame retardant case provides rugged durability for tough conditions.
Potted PC Boards for moisture and corrosion protection.
Maxtrac® Wire Drive System — heavy-duty cast aluminium wire drive system provides reliable feeding and durability.
Tachometer feedback ensures accurate wire feed speed.
The lightest construction feeder on the market today.
Accepts up to 203 mm diameter wire spools.
CrossLinc Technology allows remote output control over the welding leads.
No control cable needed!
True Voltage Technology™ (TVT™) automatically compensates for voltage drops across long welding cables.

INVERTEC® 275TP

Excellent arc characteristics for a wide range of applications and offering excellent welding processes and high performance to increase productivity. Designed and engineered for durability and reliability.

400V ±15%, 3Ph 50/60Hz, generator ready.
Light weight — 16 kg.
270A@40%/230A@60%/ 200A@100%.
Idle power 19W and efficiency > 85%.
GTAW manual and Synergic — Pulse.
SMAW manual and Synergic — Pulse.
Intelligent F.A.N. (Fan As Needed).
Customer Support.
USB Connectivity, data monitoring and software update.
Voltage Reduce Device NRD).
Cellulosic 6010 stick capability.
Water Cooler and Cart available.
Industrial grade: IP23.
3 Years Warranty — for labour and parts.

INVERTEC® 300TPX Er 400TPX

Advanced inverter technology for superior DC TIG performance. Industrial TIG welder for tough conditions.

Fully functional, user-friendly control panel layout with graph and numeric display makes it easy to set all welding parameters.
Rugged construction: electrical safety (IP23S), potted PC boards and optimum airflow reduce contamination to extend the equipment's lifespan in the harshest environmental conditions.
HF and Lift TIG ignition meeting all requirements.
Perfect TIG HF starting with pre-settable starting mode.
Complete TIG parameters setting: Pulse TIG with variable frequency that allows the welder to adjust the arc focus to suit the applications, 10 memory slots for personalised welding settings, TIG Spot welding.
Water Coolers and Carts available.
3 year warranty — for labour and parts.
Optional remote control.
Up/down function.
Cellulosic capability.

LINC® 405-SA

The rugged and distinguished workhorses

Rugged, conventional welding rectifier with excellent arc characteristics.
Capable of welding with Rutile, Basic and Cellulosic electrodes.
Arc gouging capability.
Easy to understand graphic control panels.
Ready to be moved. Equipped with wheels, pull bar and two lifting hooks.
Hot Start supporting excellent arc starting.
Arc Force to prevent sticking of the electrode in the welding pool.
Digital meters showing welding amperage.
Built-in Fan-on-Demand [EA.N.™) reduces power consumption and the intake of dust and fumes.
Lift TIG DC capability.
Cellulosic capability.
Packaging in wooden case.

LINC® 635-SA

The rugged and distinguished workhorses

Rugged, conventional welding rectifier with excellent arc characteristics.
Capable of welding with Rutile, Basic and Cellulosic electrodes.
Arc gouging capability.
Easy to understand graphic control panels.
Ready to be moved. Equipped with wheels, pull bar and two lifting hooks.
Hot Start supporting excellent arc starting.
Arc Force to prevent sticking of the electrode in the welding pool.
Digital meters showing welding amperage.
Built-in Fan-on-Demand [FAN.™) reduces power consumption and the intake of dust and fumes.
Lift TIG DC capability.
Cellulosic capability.
Packaging in wooden case.

HOT ROD 500S

The tough and powerful professional welder

Excellent arc characteristics for a wide range of electrode types.
Maximum output of 625A allows the use of electrodes up to 6.3 mm and air carbon gouging with 8mm electrodes.
Desert rated operating temperature of up to 55°C.
Stackable case design with built-in hook. Easy storage and handling.
Submersion dipped transformer assembly and fully potted Power Circuit Board for added corrosion and moisture protection.
Input voltage compensation for constant output.
Thermostatic overload protection.
Capable of welding with Rutile, Basic and Cellulosic electrodes.
Cellulosic capability.

VRTEX® 360 Compact

Discover virtual welding training in a new, compact size.

Lincoln Electric's VRTEX® 360 Compact is a new, small Virtual Reality Welding Simulator for mobile-use in multiple environments.
It provides a flexible, powerful, cutting-edge solution for cultivating welding talent quickly and resourcefully. The cost-effective small-sized solution offers superior graphics, which creates the most realistic and responsive welding puddle available and is convincing with accurate sounds and movements.
With the new VRTEX® 360 Compact, virtual welding training can seamlessly transfer into real-world, hands-on welding training.

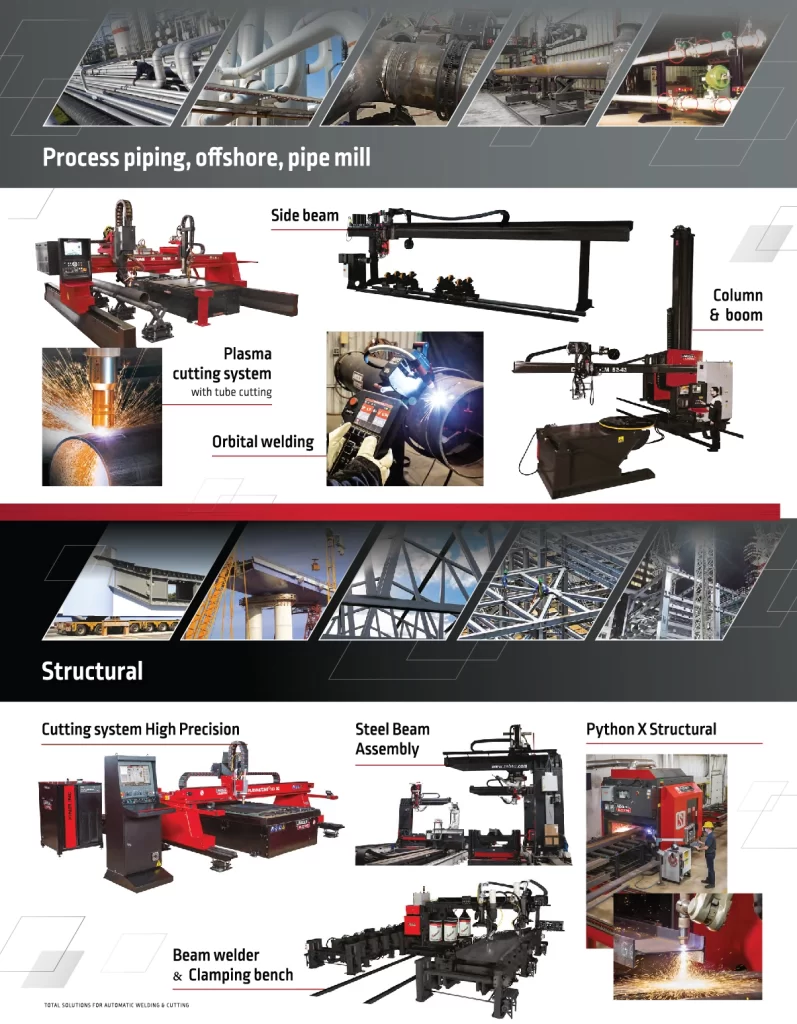

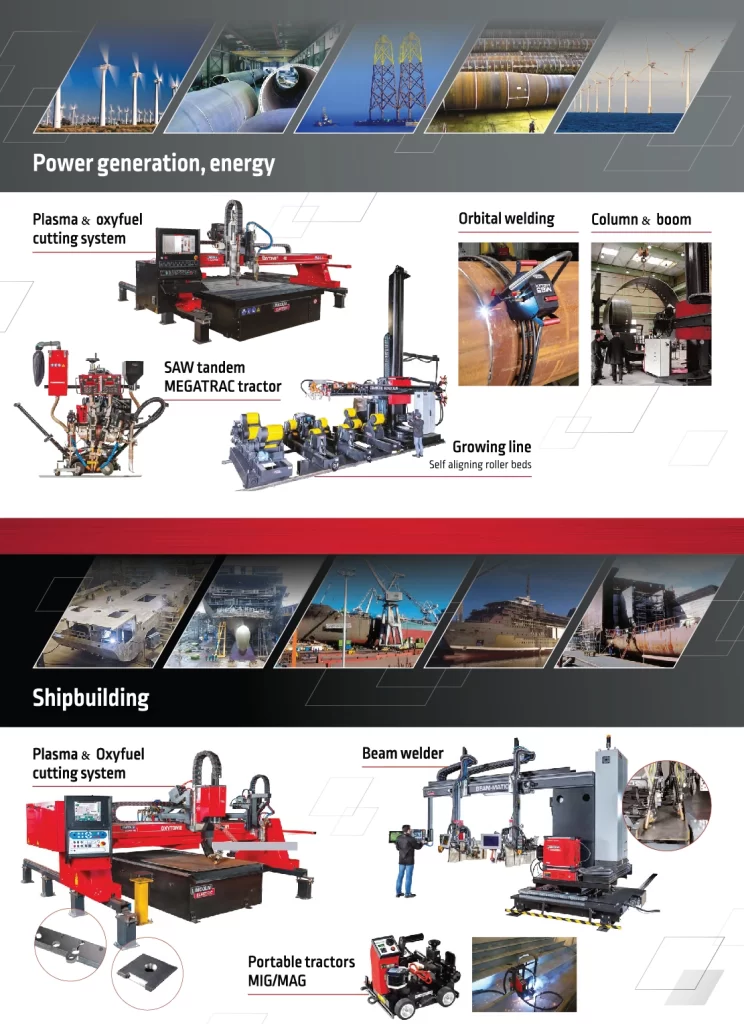

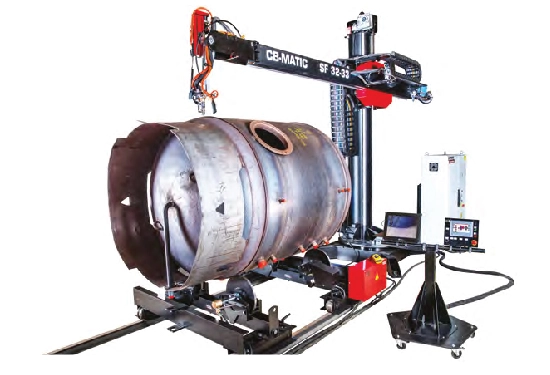

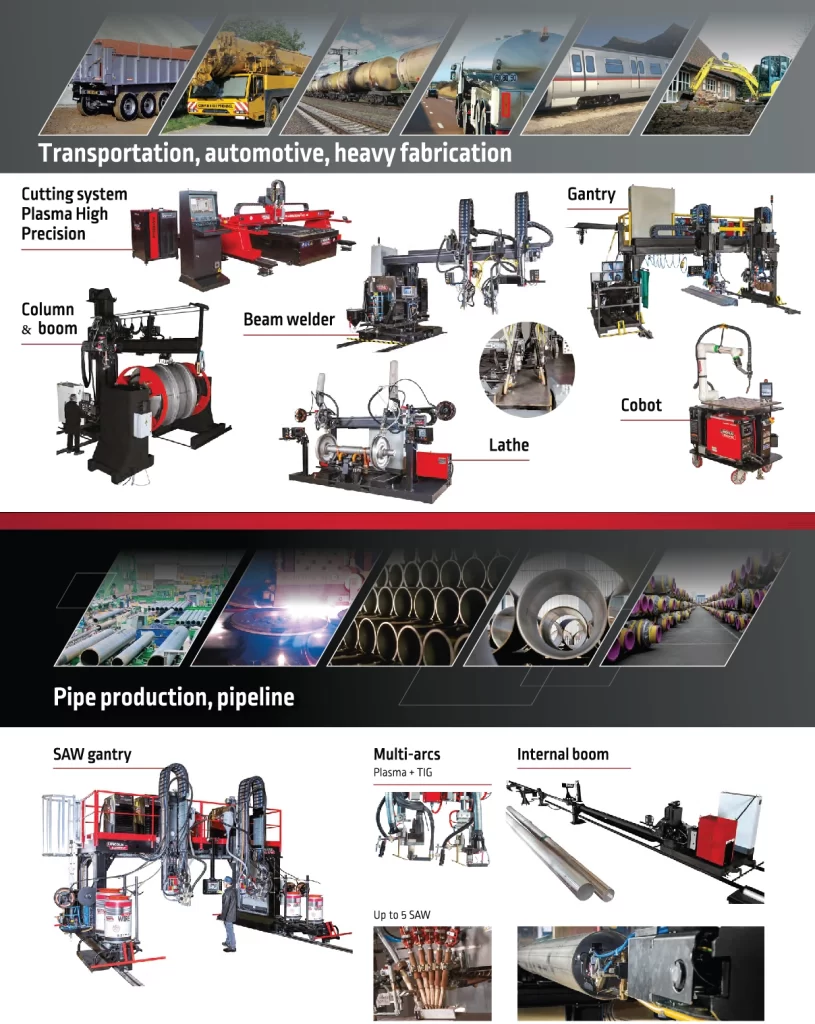

Automation- WELDING & CUTTING

“Automation” is an excellent opportunity for companies looking for continuous Improvement and performances.

For Lincoln Electric the automation of welding and cutting processes is not new, but rather a source of innovation that we want to share with our customers.

We invest heavily in the development of intelligent welding and cutting technology solutions to combine the quality and performance you want.

Automation in general brings important changes in the way you organize your workshops. It is for this reason that the pooling of our expertise in the search for the most suitable solution is essential in order to increase your productivity, the reliability, the safety of your staff, all in the greatest respect of the environment.

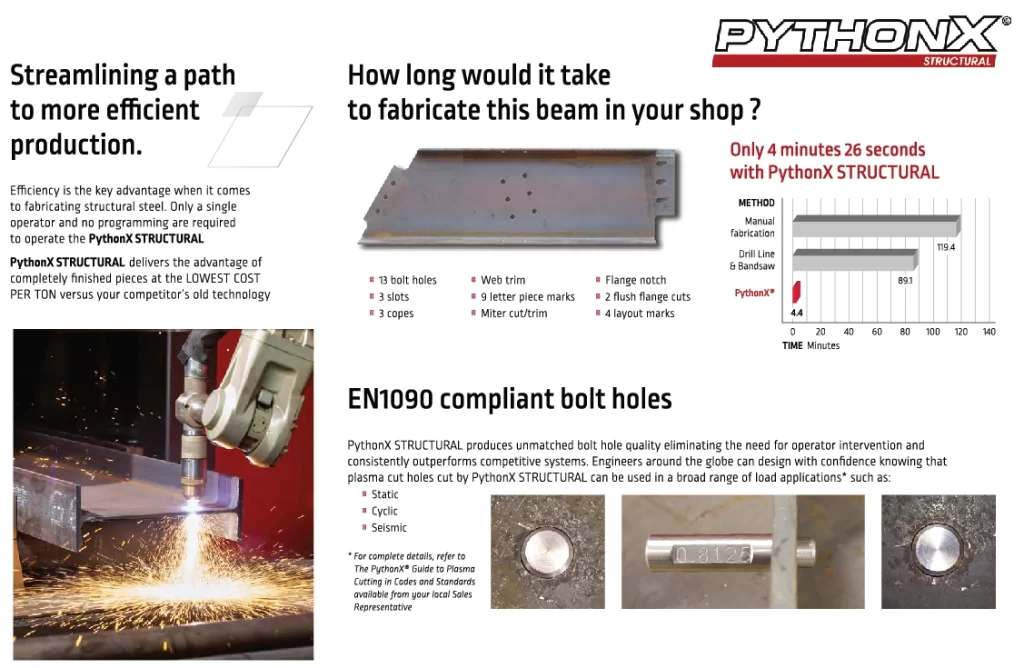

PythonX STRUCTURAL

All in one solution for infrastructure segment

PythonX STRUCTURAL is the leading all-in-one robotic plasma system in the world trusted by more end-users with over 440. systems installed worldwide.
This CE certified system takes in your drawing files and automatically processes beams, channels,
angles, square and rectangular tubes, as well as plate, all on one machine. In addition, the machine produces bolt holes that are EN1090 compliant.
Additional cutting capabilities include copes, slots, cutouts, cut to length, miter cuts, weld preps, and scribe part/layout marks, all done in one place, eliminating countless hours of material handling in between operations.
Because everything is done on one machine, saving you valuable shop space, you’ll be able to streamline your operations. PythonX STRUCTURAL allows you to automate structural steel fabrication operations in your plant, saving you time and money.

SAW INVERTER POWER SOURCE

POWER WAVE® AC/DC 1000 SD

Lincoln Electric offers inverter technology for DC and AC SAW with Power Wave• AC/DC 1000 SD:

Efficient power consumption reducing operating costs
High duty cycle at 100%
Easy to integrate from conventional interface to digital unit
Multi-purpose installation: - CV: Constant Voltage - CC: Constant Current
True Energy™: mesures, calculates and displays instantaneous energy
Check Point™. a cloud-based system to view or analyse your welding data

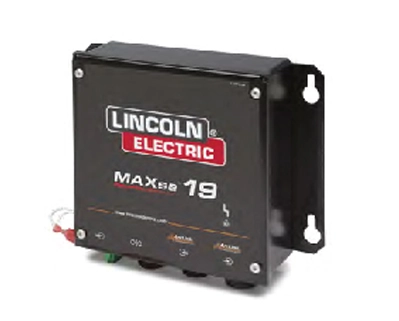

Control panels: - MAXsa® 10 - PILOT PRO

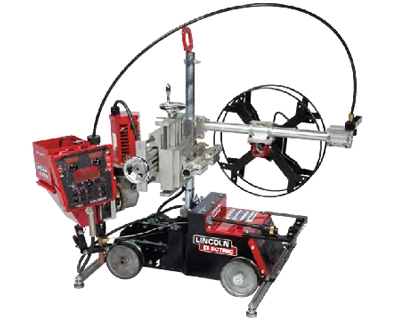

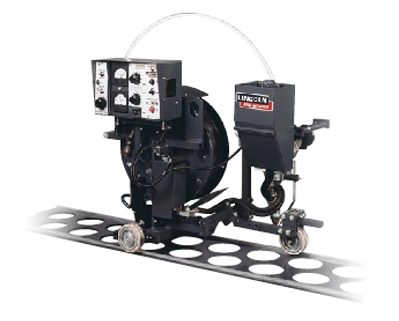

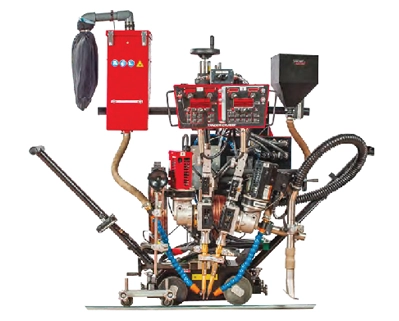

SAW TRACTORS

SAW tractors to perform regular welds for many applications:

TOMAHAWK® 1538

100A Air Plasma Cutter

Versatile, qualitative, economical in automatic or manual cutting

The TOMAHAWK° 1538 is a plasma cutting power source with contact ignition

and compressed air, allowing automatic or manual cutting up to 30 mm and automatic piercing up to 20 mm.

It is particularly easy to set up and use and is built with the LINCOLN ELECTRIC robust power sources design and is guaranteed for 3 years.

The consumables are specially designed to produce superior and economical cutting qualities with very thin and medium thicknesses using compressed air whilst also

at ease cutting and piercing thicknesses up to 20 mm to produce small parts.

The TOMAHAWK. 1538 can work with:

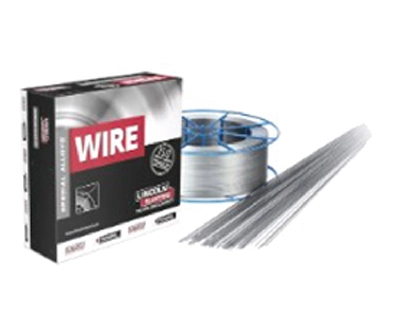

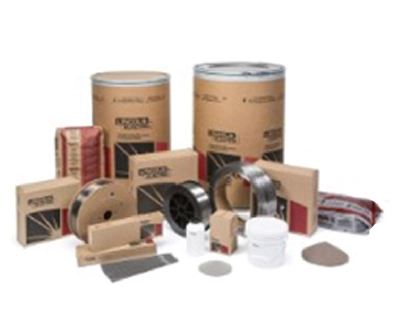

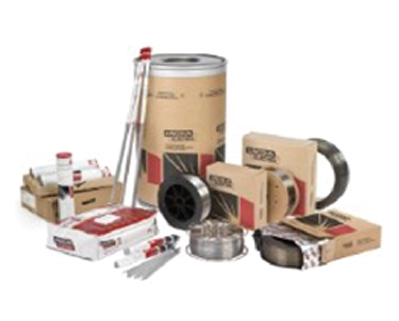

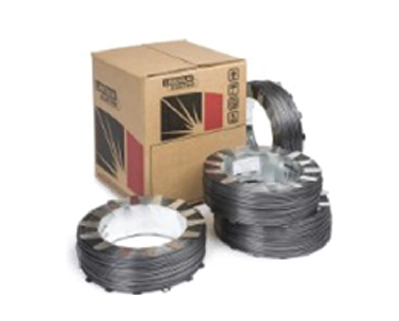

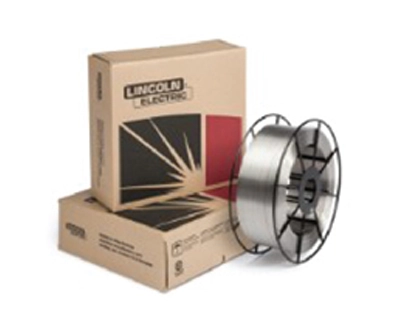

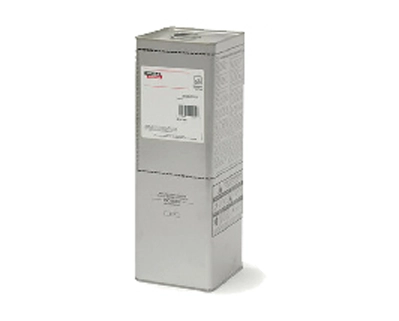

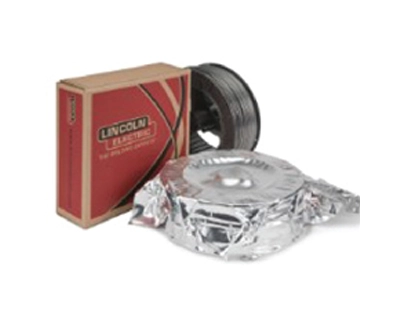

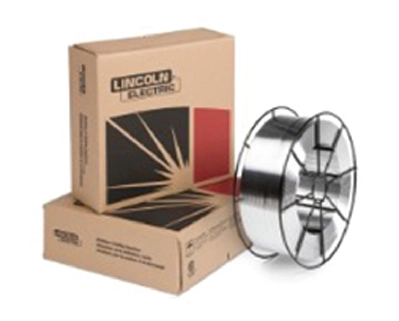

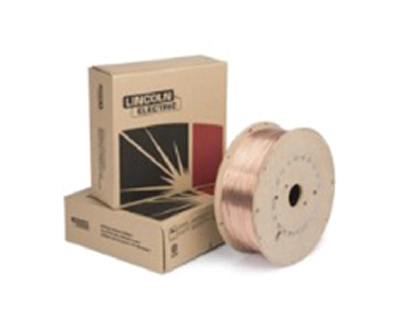

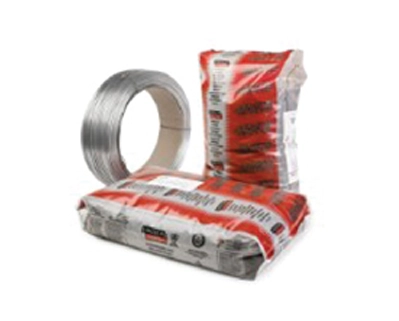

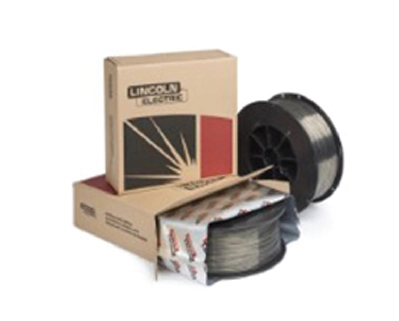

WELDING CONSUMABLES

Lincoln Electric is focused on helping companies make their welding operations more effective, more efficient and more profitable.

Dedicated to two equally important goals: exceptional quality and exceptional service. Field support team — with several knowledgeable and responsive Lincoln Electric distributors in countries all over the world — is the largest in the industry. Lincoln Electric’s innovative thinking, fresh approach to design and a quality-first attitude presents our customers with worldwide strength and support. INDUSTRY-LEADING CONSISTENCY Consistency is critical to the strength and appearance of every weld. Lincoln Electric quality starts with superior materials — incoming raw steel slated for use in consumables is analyzed for chemical composition, checking more than 20 different elements before being cleared for production. The result is a line of weld consumables that are reliably uniform in diameter and chemical composition. In fact, Lincoln Electric standards are considerably more restrictive than AWS requirements. ISO 14001:2004 9001:2000 BETTER MANUFACTURING SYSTEMS Lincoln Electric employs the most technically advanced and carefully monitored manufacturing and quality control systems in the welding industry. The result is a line of weld consumables that are reliably uniform. INDUSTRY SOLUTIONS Lincoln Electric is committed to developing welding solutions that meet the unique needs of our customers, worldwide. Becoming Lincoln Electric’s global partner provides your company with specialized, industry-tested equipment and consumables created to meet industry specific welding requirements. Whether your company manufactures pipelines, wind towers or offshore oil rigs, choosing Lincoln Electric ensures maximum productivity, quality and profitability for our customers. THE SYMBOL OF DEPENDABILITY Our stick electrodes have been the number one choice of fabricators for over a century. They are easily identified by three dots, which are a symbol of quality, consistency, and unparalleled welding expertise. When only the best will do, there is no substitute for a Lincoln Electric stick electrode.
