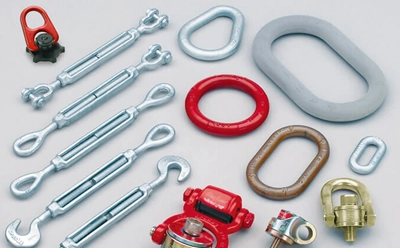

The Crosby brand has been trusted for hundreds of years. As the world’s leading manufacturer for rigging, lifting, and material handling applications, Crosby delivers the industry’s most comprehensive portfolio of products, engineered to exceed the toughest demands. We serve the land-based and offshore energy, construction and infrastructure, cargo handling and towing, marine, mining, and transportation industries. Our products of uncompromising quality include Red Pin® shackles, hooks, wire rope clips and end fittings, chain slings and accessories, hoist rings, master links, lifting clamps, turnbuckles, snatch blocks, crane blocks, sheaves, load binders, hoists, mooring components and a host of other custom-engineered solutions.

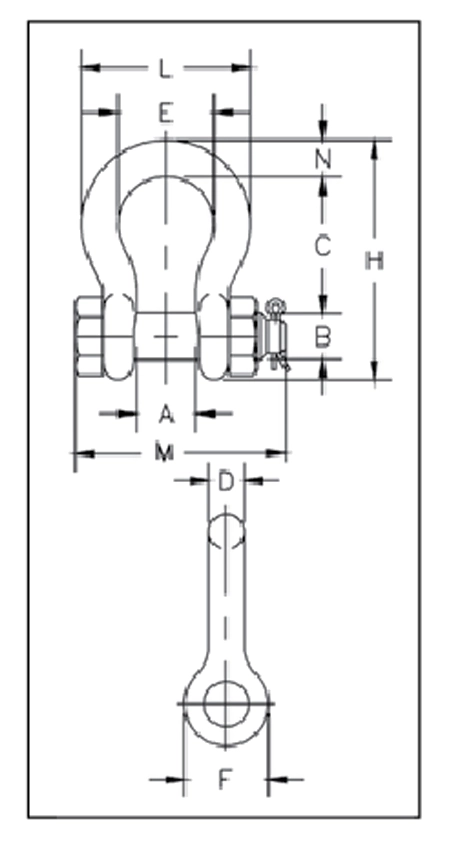

Crosby® Bolt Type Shackles

  • Capacities 1/3 thru 150 metric tons, grade 6.
  • Working Load Limit and grade "6" permanently shown on every shackle.
  • Forged - Quenched and Tempered, with alloy bolts.
  • Hot Dip galvanized or self colored. (85, 120, and 150 metric ton shackles are all hot dip galvanized bows and the bolts are Dimetcoted and painted red)
  • Sizes 3/8 and below are mechanically galvanized.
  • Fatigue rated (1/3t - 55t).
  • Shackles 25t and larger are RFID EQUIPPED.
  • Approved for use at -40° C (-40° F) to 204° C (400° F).
  • Meets or exceeds all requirements of ASME B30.26.
  • Shackles 85 metric tons and larger are individually proof tested to 2.0 times the working load limit.
  • Type Approval certification in accordance with ABS 2016 Steel Vessel Rules ABS Guide for Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
  • 3.1 Certification as standard available for charpy and statisti al proof test from 3.25t up to 25 tons to DNV2.7-1 and EN13889.
  • Crosby 3.25t through 25t G21300C anchor shackles are type approved to DNV Certification Notes 2.7-1- Offshore Containers. These Crosby shackles are statistical proof and impact tested to 42 Joules (31 ft•lbf) min. avg. at -20° C (-4° F). The tests are conducted by Crosby and 3.1 test certification is available upon request. Refer to page 87 for Crosby COLD TUFF shackles that meet the additional requirements of DNV rules for certification of lifting applications - Loose Gear.
  • All other 2130 shackles can meet charpy requirements of 42 Joules (31 ft•lbf) avg at -20° C (-4° F) when requested at time of order.
  • Look for the Red Pin" ... the mark of genuine Crosby quality.

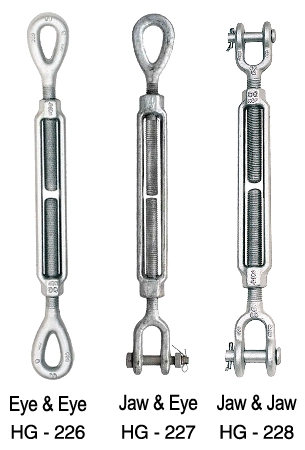

Jaw & Jaw Turnbuckles

  • End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.
  • Hot Dip galvanized steel.
  • TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY .
  • Forged jaw ends are fitted with bolts and nuts for 1/4" through 5/8", and pins and cotters on 3/4" through 2-3/4" sizes.
  • Modified UNJ thread on end fittings for improved fatigue propertie
  • Body has UNC threads.
  • Lock Nuts available for all sizes (see page 198).
  • Comprehensive end fitting data provided on page 196.
  • Fatigue Rated.
  • Meets or exceeds all requirements of ASME 830.26 including identification, ductilit , design factor, proof load and temperature requirements. Importantly, these turnbuckles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

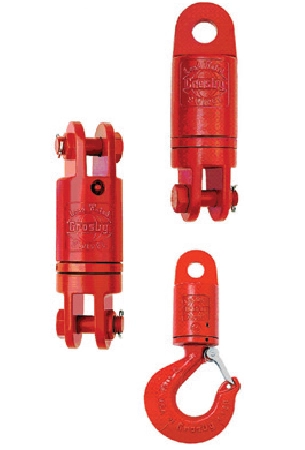

Hooks & Swivels

Equipped with Tapered Roller Thrust Bearing
  • Suitable for frequent rotation under load.
  • All swivels individually proof tested with labeled documentation.
  • All hooks furnished with latches assembled.
  • All jaws complete with bolts, nuts and cotter pins.
  • Pressure lube fitting provided.
  • NOT TO BE USED ON DEMOLITION (WRECKING) BALLS.
  • Other types and capacities up to 1250t, available to meet your requirements.
  • IMPORTANT - Crosby Swivels should only be used with the recommended wire rope. Contact the wire rope manufacturer for the proper wire rope to be used with Crosby Swivels.

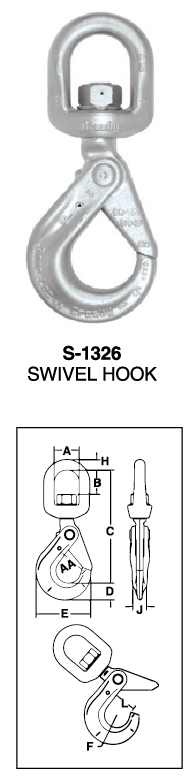

Crosby® SHUR-LOC® Hooks

  • Forged Alloy Steel - Quenched and Tempered.
  • Individually Proof Tested at 2-1/2 times the Chain Working Load Limit with certification
  • Recessed trigger design is flush with the hook bod , protecting the trigger from potential damage.
  • Easy to operate with enlarged thumb access.
  • Positive Lock Latch is Self-Locking when hook is loaded.
  • Rated for both Wire Rope and use with Grade 80/100 Chain or G-411 Standard Th
  • G-414 Heavy Thimble or G-411 Standard Thimble should be used with wire rope slings.
  • Trigger Repair Kit available (S-4316). Consists of spring, roll pin and trigger.
  • S-13326 Swivel Hook utilizes anti-friction bearing design which allows hook to rotate freely under load.
  • Fatigue rated.
  • The SHUR-L005 hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(13).
  • The SHUR-L005 hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(13).

McKissick° Snatch Blocks

  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended.
  • Bolt for opening feature is retained, to ensure no lost bolts.
  • Forged steel swivel tees, yokes and shackles.
  • Can be furnished with bronze bushings or roller bearings.
  • Center pin equipped with pressure lube fitting.
  • All sizes feature sheave grooves suited for a range of wire line diameters.
  • Meets or exceeds all requirements ofASME 830.26 including identification ductility, design factor, proof load and temperature requirements. Importantly, these blocks meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26.
  • "All Alloy" snatch blocks feature a significant reduction in weight compared to snatch blocks made of non-alloy materials.
  • "Lebus, General Purpose" snatch blocks (with shackle or hook) feature an easy-to-open bolt design. The retaining bolt is released by rotating the fitting assembl , no tools required.
  • Crosby's Engineered Solutions Group is ready to discuss your requirements and help select or develop the ideal block for your application. Call us at 1-800-777-1555.

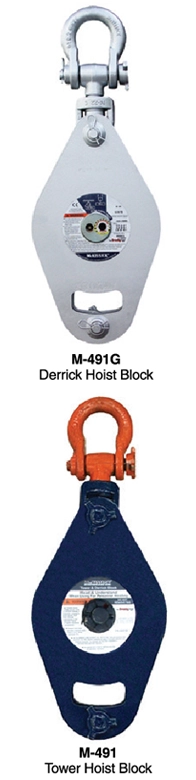

McKissick® Oilfield Servicing Blocks

New design provides the dependability of standard McKissick® Snatch Blocks, along with features that make it perfect for the challenging needs of Tugger Hoist and Tower Erection applications
  • A wide variety of configurations
  • 4, 8, 12, 15, 25 or 30 metric ton capacity
  • 10, 13, 16, 19, 22, 25 and 32mm Wireline sizes
  • Painted or Galvanized finis
  • 203mm and 254mm blocks furnished with dual rated Wireline sheaves.
  • Forged steel swivels, tees, yokes and shackles are Quenched & Tempered.
  • Sheave lubrication through center pin for easy maintenance.
  • Design factor of 4:1.
  • All blocks 356mm and larger are furnished with McKissick® Roll Forged sheaves with flame hardened grooves
  • Recessed sideplate design reduces the gap between the sheave rim and the sideplate, allowing the sheave assembly to be captured in the block if loss of center pin occurs.
  • Sealed tapered roller bearings extend the life of the center pin and bearings, and allows for faster line speeds than recommended with standard snatch blocks.
  • Shackle fitting swivels for easy positioning
  • Suitable for hoisting personnel, contingent upon all employees, including the winch M-491G operator, being trained to follow applicable Federal, local and industry standards.
  • Tugger/Derrick applications: API RP54
  • Tower applications: OSHA directive CPL 2-1.36
  • Holes through side plates are available for secondary block securement device.
  • Manufactured by an API Q1 Certified facilit .
  • Type Approval and certification in accordance with ABS 2015 Steel Vessel Rules 1-1-17.7, and ABS Guide for Certification of Cranes
  • All sizes are RFID EQUIPPED.
